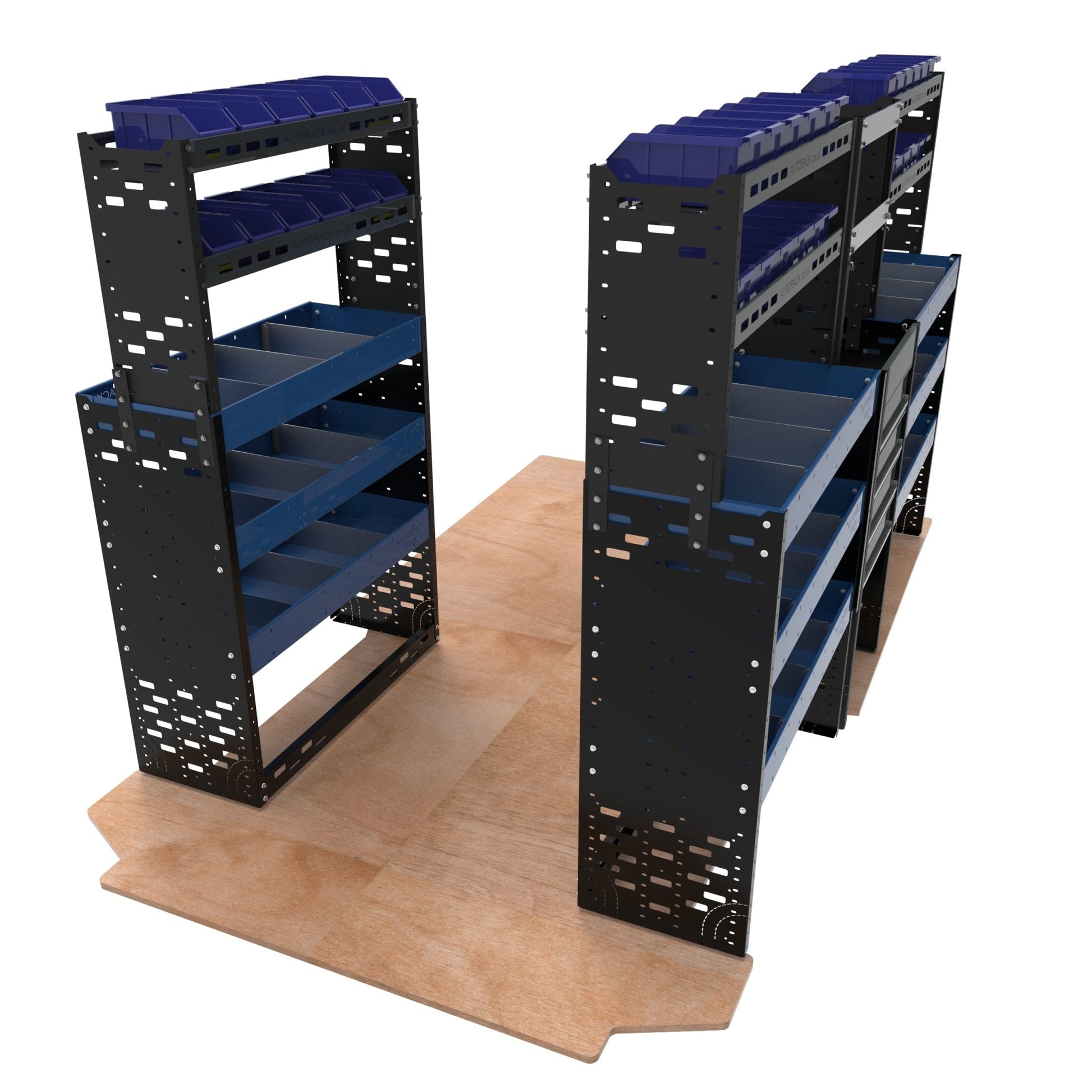

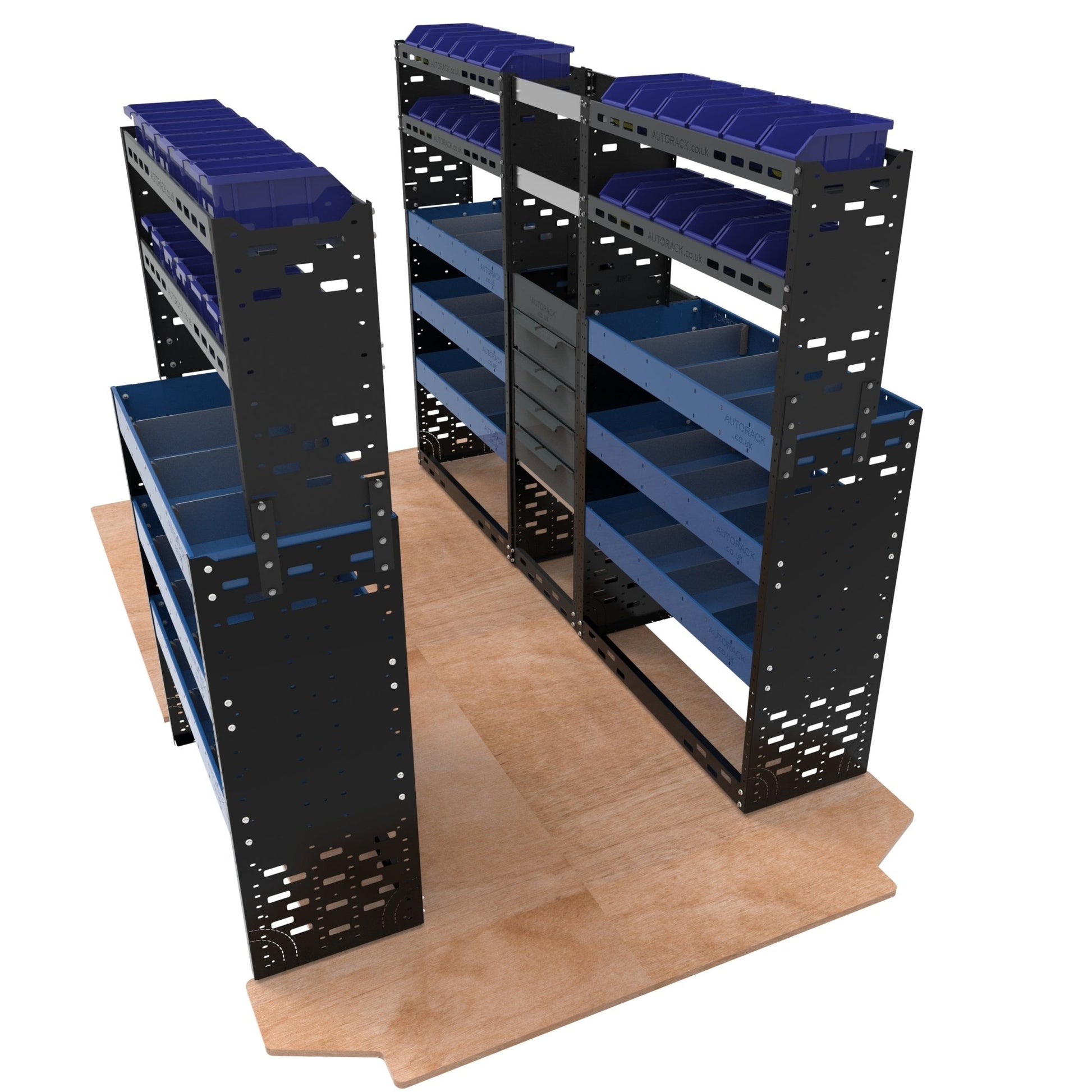

AutoRack Extra-heavy duty steel van racking, shelving system kit. Comprises a 4 unit van racking kit, with 9 extra large capacity shelves with double folded top edges and removable metal dividers. Each base unit shelf 400mm deep & 100mm high. 3 extension tops 275mm deep with a double row of XL3 plastic bins (36 in total). Extension tops can be fitted at the front or rear depending upon the curvature of the van sides. Brace bars on all units included. Ideal for mid & large size panel vans.

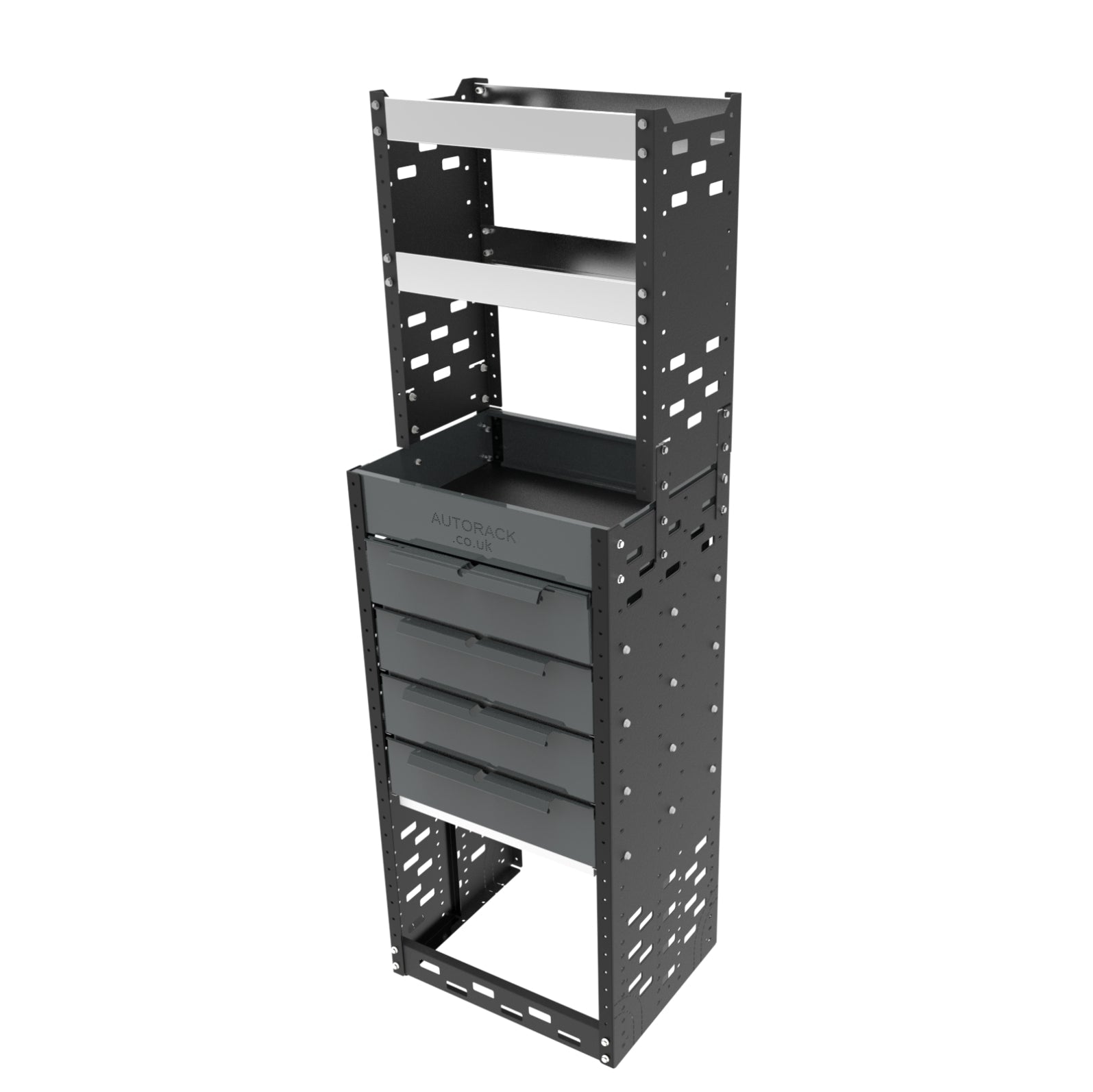

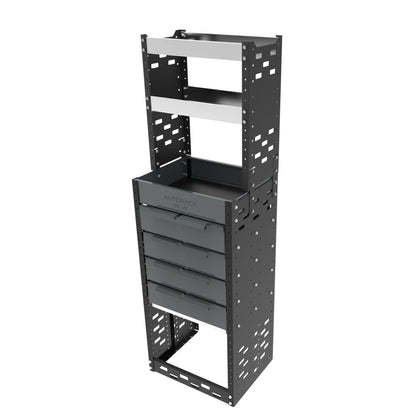

The package also includes a four drawer module with small galvanised extension trays on top. To learn more about the drawer module see here.
Exceptionally strong, professional, quality UK manufactured product. Solid bolt together racking, built to last. Base unit 405mm over-all depth for extra stability and 1.2mm gauge steel bins for extra durability.
Also, you can swap the XL3 blue plastic bins for standard shelves. Please enquire.
Delivered as easy to assemble modules and side panels. Delivered on a pallet.
System External Dimensions (mm)
N/S H-1700 x D-405 x L-975
O/S H-1700 x D-405 x L-2455
(Ply floor NOT included)
IT'S IN THE DETAIL

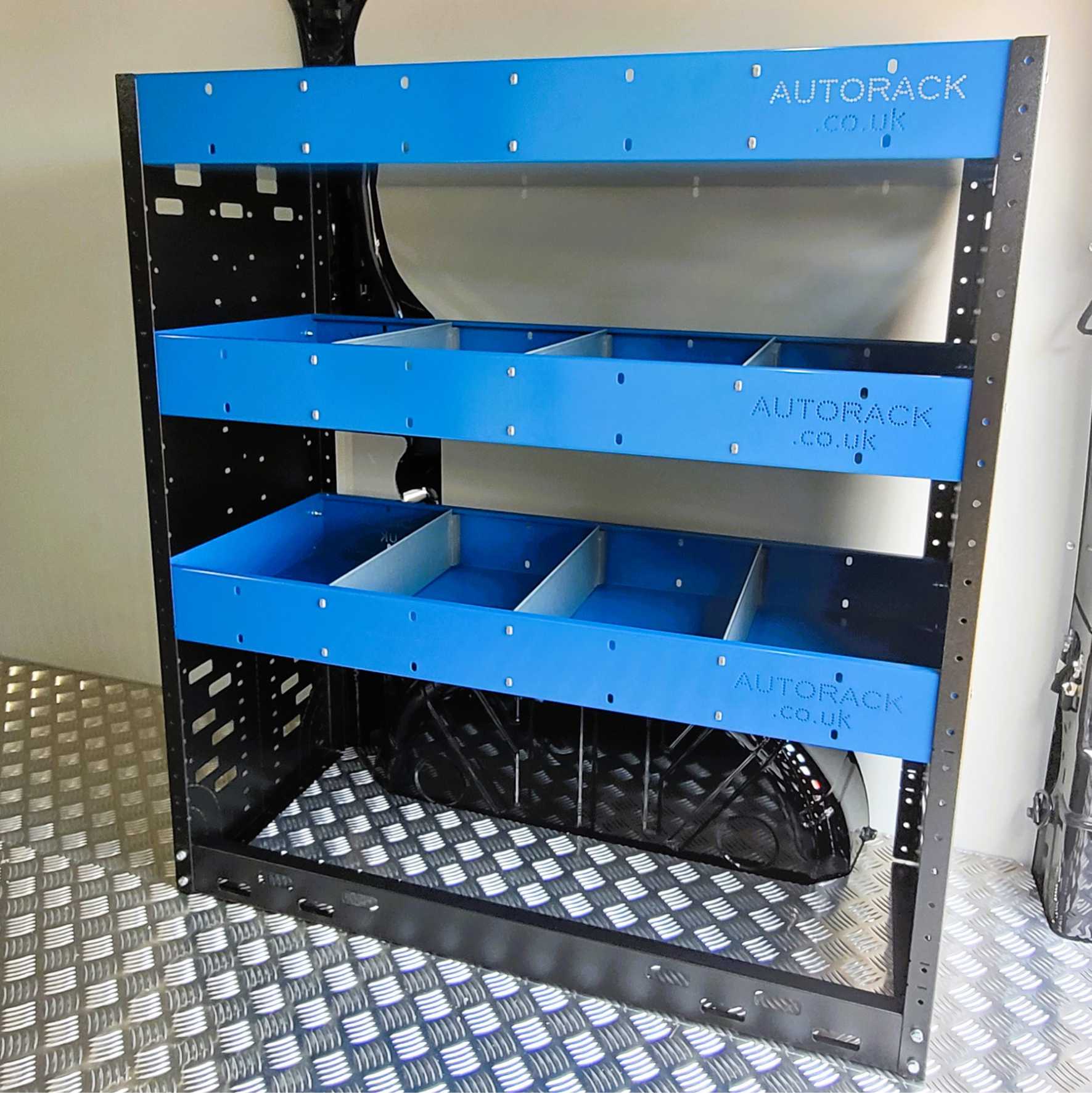

100mm deep shelf, 1.2mm thick steel with 8mm folded front edge for extra strength. 1.0mm galvanised metal dividers, and robust mounting clips all included as standard.
IT'S IN THE DETAIL
Tough 1.5mm powder coated kick plates are included as standard unless a shelf is fitted at the lowest level.
IT'S IN THE DETAIL
1.5mm thick powder coated side packs. Multiple holes so the shelf heights can be adjusted. The racks are designed to straddle a standard wheel arch, but they include pre templated cut-out guides should you wish to site the rack on top of the wheel arch.
UK STOCK. Next day available.
