£1,259.00

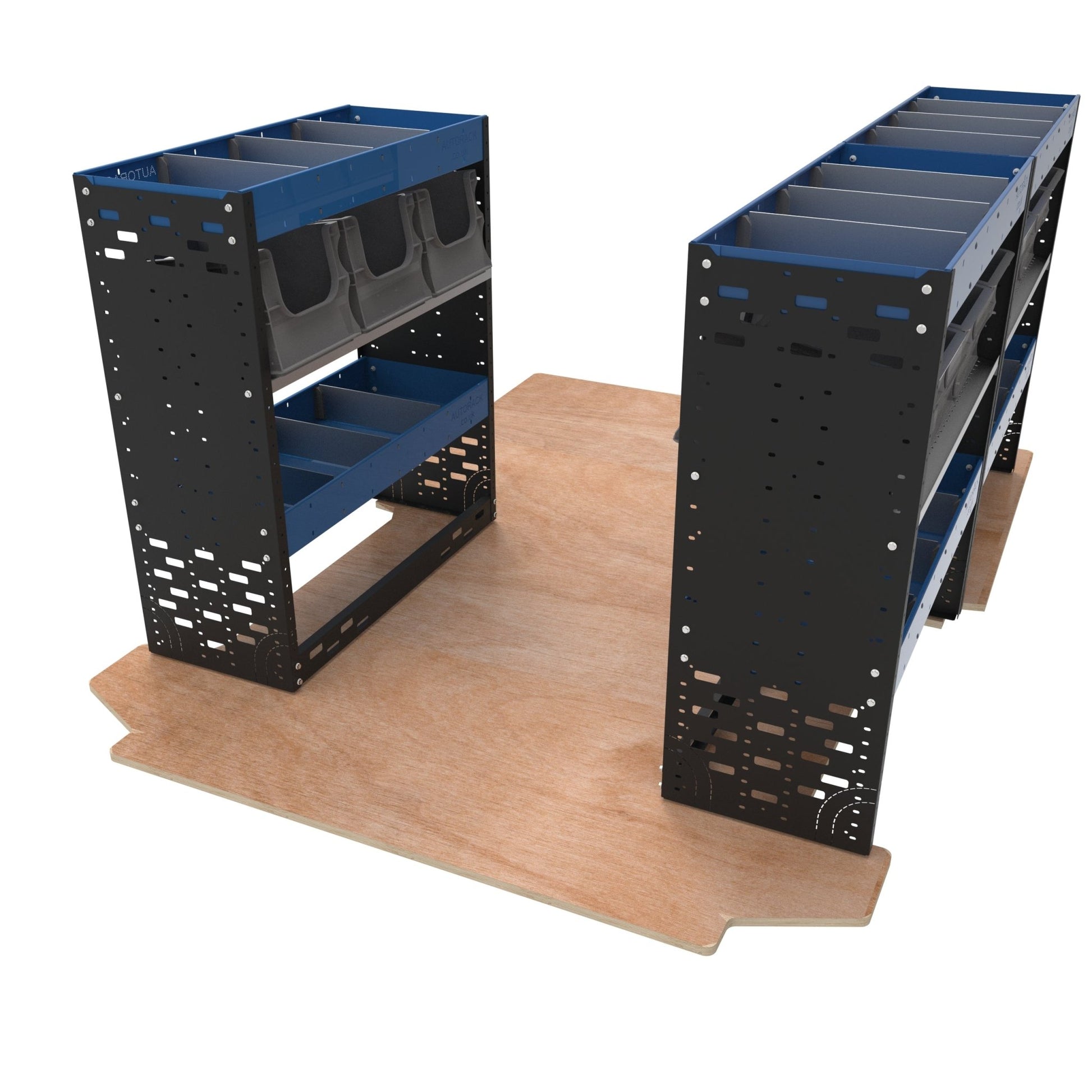

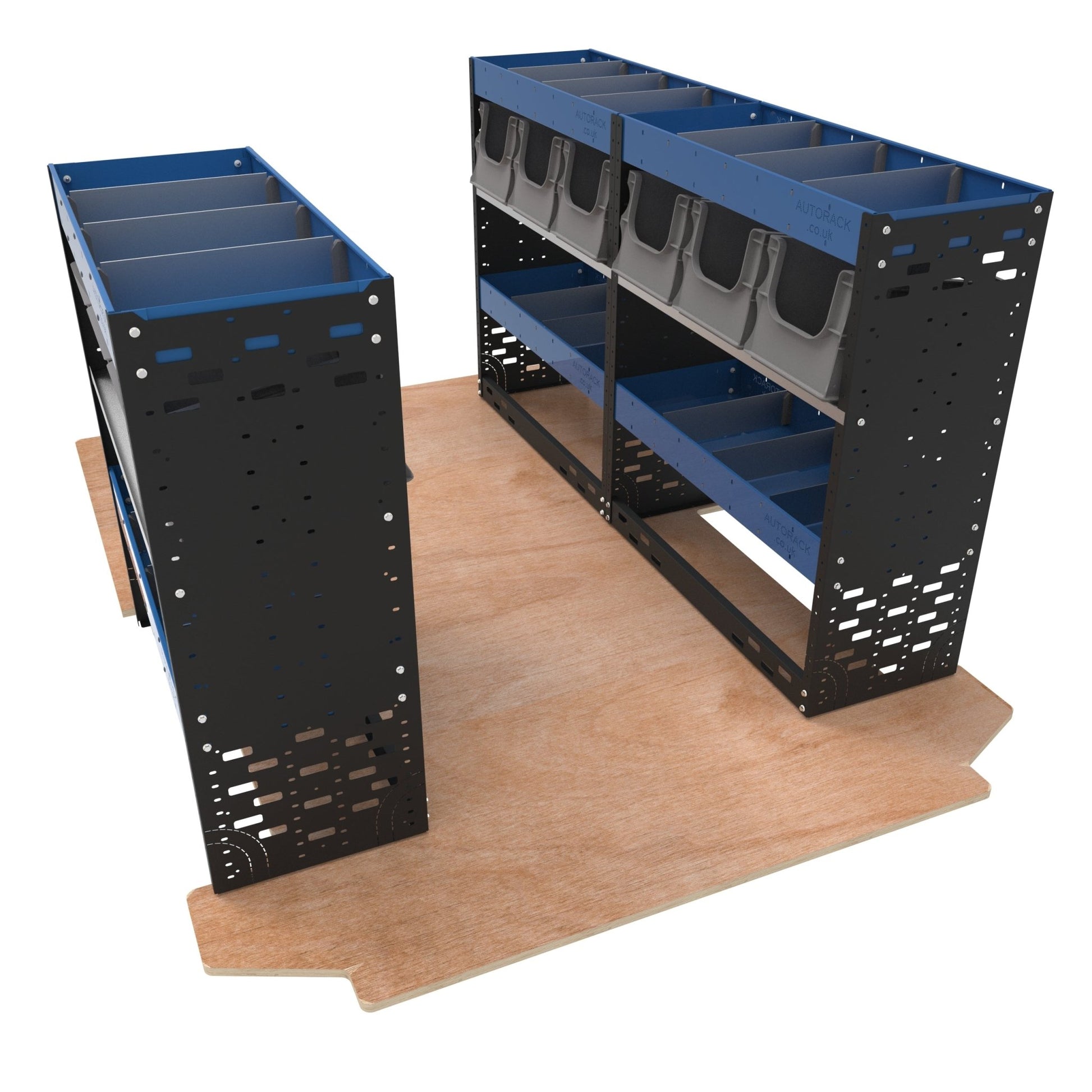

AutoRack Extra-heavy duty steel van racking, shelving system kit.
Exceptionally strong, professional, quality UK manufactured product.
Solid bolt together racking, built to last.
405mm over-all depth for extra stability and 1.2mm gauge steel bins for extra durability.
3 Unit Extra heavy duty van racking package kit, comprising of 6 shelves with double folded top edges and removable dividers.
3 Galvanised steel sloping shelves with 9 x heavy duty, 25 Litre plastic picking bins. Ideal for plumbers fittings etc.
Ideal for mid size panel vans.
These racks are 1080mm high allowing room for ladders etc to be stored above. Various extension top options are available to take the height to 1340mm or up to 1700mm high. See extension tops here.

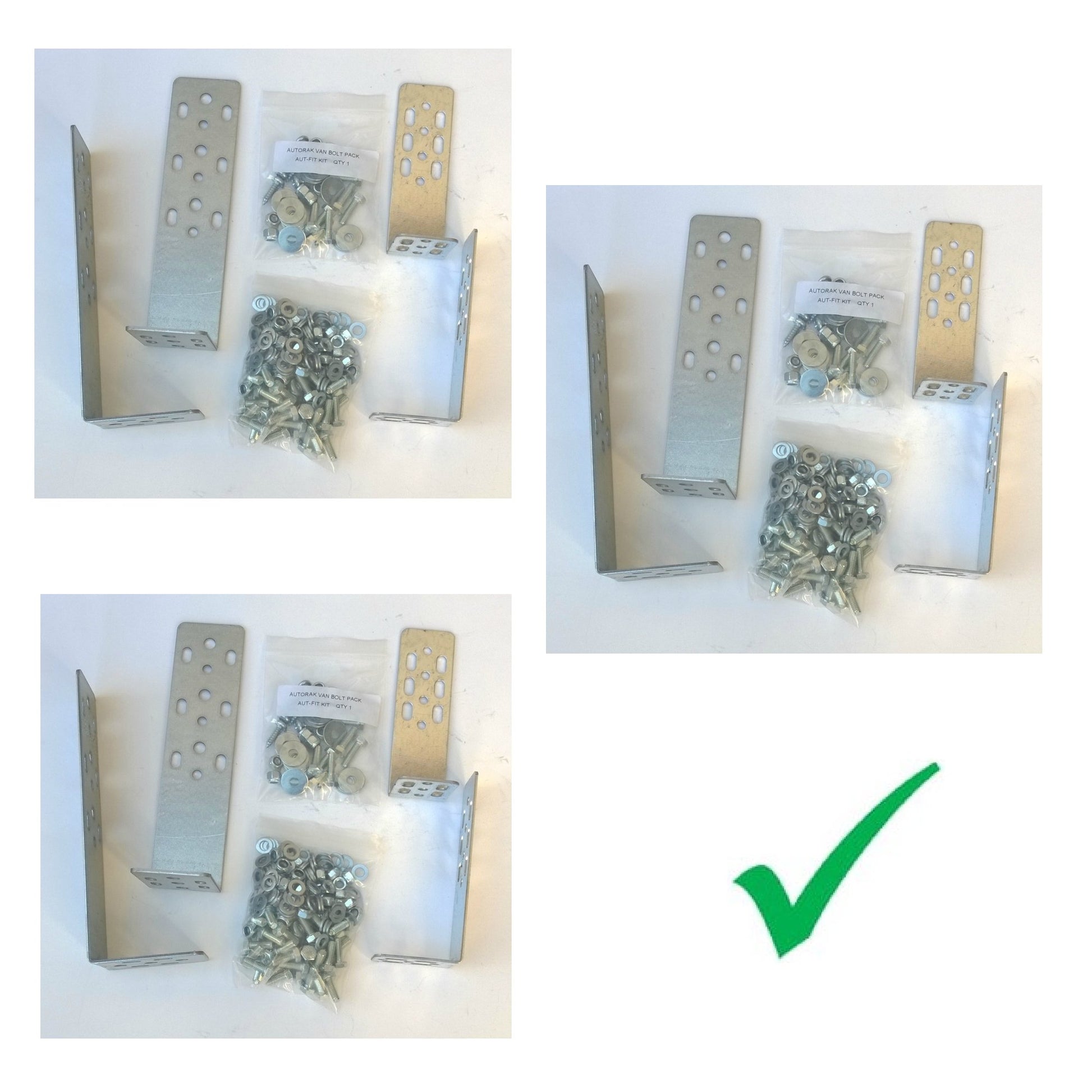

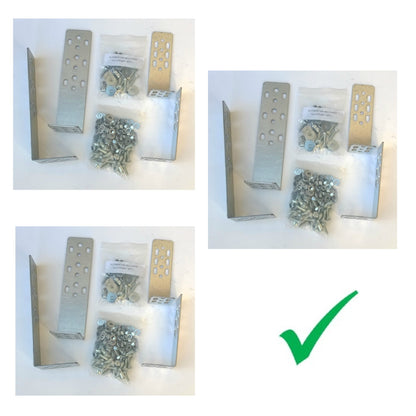

Includes shelf dividers and general purpose fitting kit.
Delivered as easy to assemble modules and side panels. Comes on a pallet.
System External Dimensions (mm)
N/S H-1080 x D-405 x L-975
O/S H-1080 x D-405 x L-1950
Plastic Picking Bin Internal Measurements = 360-length x 260-width x 220-high mm
(Ply floor NOT included)
Fitting Instructions
IT'S IN THE DETAIL
100mm deep shelf, 1.2mm thick steel with 8mm folded front edge for extra strength. 1.0mm galvanised metal dividers, and robust mounting clips all included as standard.
IT'S IN THE DETAIL
Tough 1.5mm powder coated kick plates are included as standard unless a shelf is fitted at the lowest level.
IT'S IN THE DETAIL
1.5mm thick powder coated side packs. Multiple holes so the shelf heights can be adjusted. The racks are designed to straddle a standard wheel arch, but they include pre templated cut-out guides should you wish to site the rack on top of the wheel arch.
UK STOCK. Next day available.
