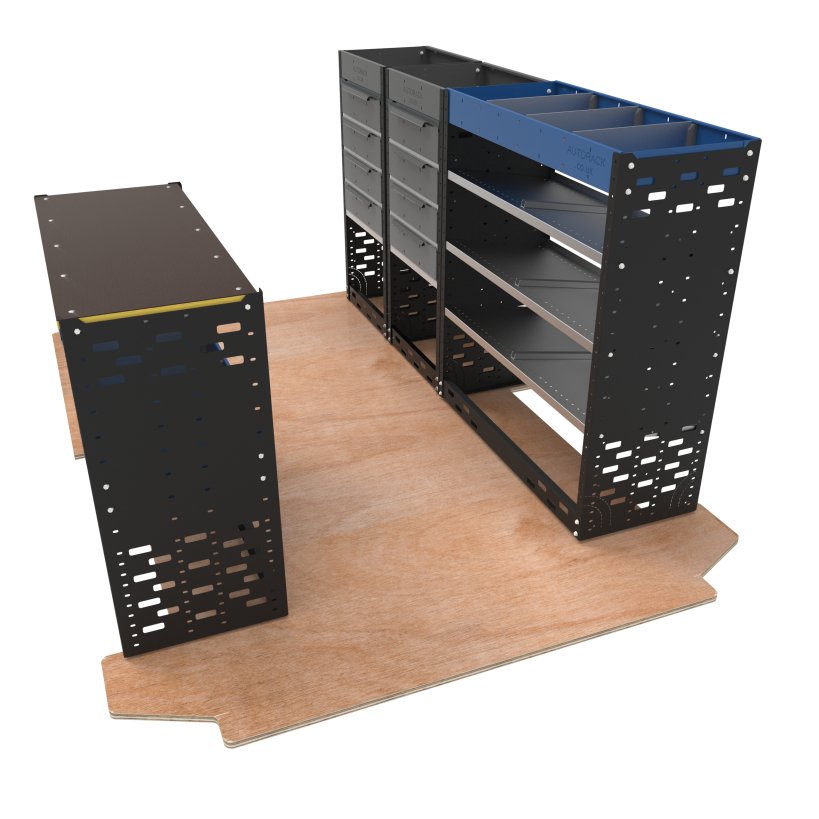

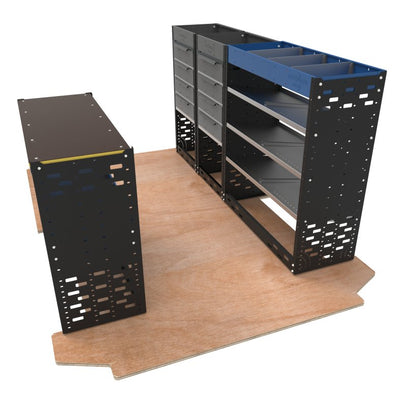

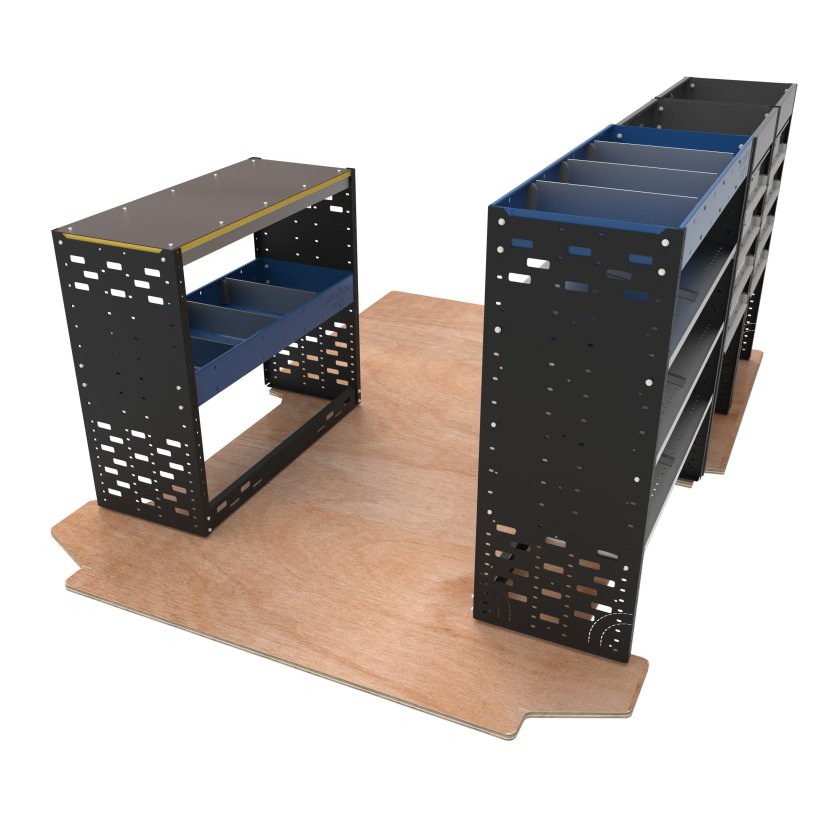

Van Racking System:
Nearside: 1 x heavy duty workbench
Offside: 2 x Drawer units (4 drawers per unit).
1 x extra heavy duty wheel arch with 1 shelf & 3 sloped tool case shelves.
Ideal for mid & large size panel vans with single side loading door.
These racks are 1080mm high allowing room for ladders etc to be stored above. Various extension top options are available to take the height to 1340mm or up to 1700mm high. See extension tops here.
Learn more about the drawers here.

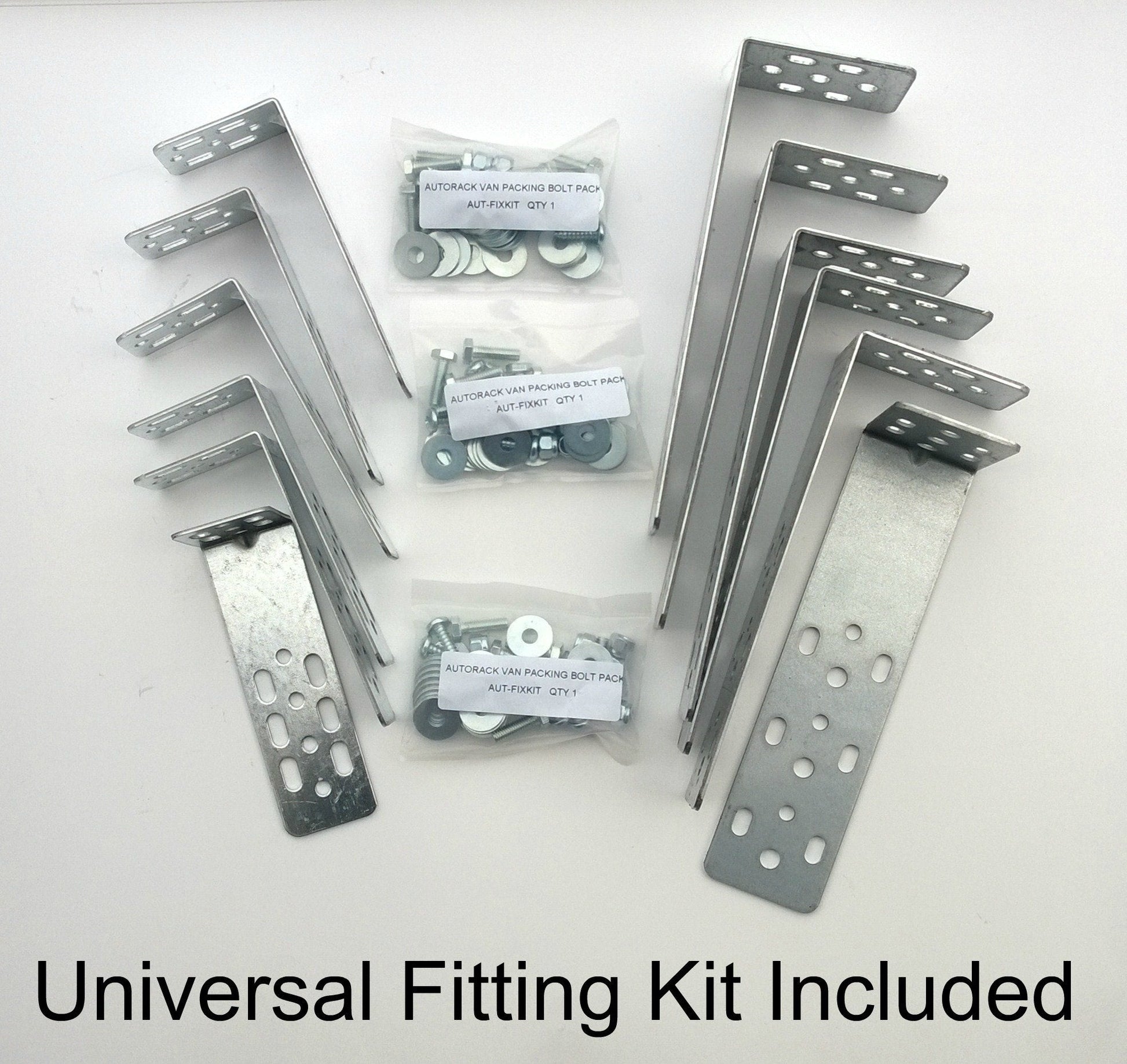

Includes front braces, shelf dividers and general purpose fitting kit.
Premium quality product made in the UK.
Delivered in easy to assemble modules & side-packs. Comes on a pallet.
System External Dimensions (mm)
N/S H-870 x D-405 x L-975
O/S H-1080 x D-405 x L-2015
(Ply floor NOT included)
Fitting Instructions
IT'S IN THE DETAIL
100mm deep shelf, 1.2mm thick steel with 8mm folded front edge for extra strength. 1.0mm galvanised metal dividers, and robust mounting clips all included as standard.
IT'S IN THE DETAIL
Tough 1.5mm powder coated kick plates are included as standard unless a shelf is fitted at the lowest level.
IT'S IN THE DETAIL
1.5mm thick powder coated side packs. Multiple holes so the shelf heights can be adjusted. The racks are designed to straddle a standard wheel arch, but they include pre templated cut-out guides should you wish to site the rack on top of the wheel arch.
UK STOCK. Next day available.
